Teren 4-20mA Portable Ultrasonic Water Flow Meter

FOB Reference Price:Get Latest Price
$300.00 - $1,000.00 / Units | 1 Unit/Units (Min. Order)
Material:
metal
Accuracy:
0.2%
Size:
as picture
Lead Time:
Quantity(Units) 1 - 5 >5
Est. Time(days) 6 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Liaoning, China
Brand Name:
Teren
Model Number:
TDS-100P/DTI-100P
Type:
Variable Area Water Flowmeters
Accuracy:
±1.0%
Repeatability:
Better than 2%
Diameter measurement:
15mm - 6,000mm
Suitable temperature:
-40-160 ℃
Signal output:
RS485,4-20mA
Certificates:
CE ,FCC,FOSE, ISO
Datalogger:
Printing or SD card
Install type:
Clamp on type or bracket
Communication protocol:
Modbus,M-bus
Power:
220VAC or 110VAC rechargable battery
Supply Ability
Supply Ability:
1000 Unit/Units per Month
Packaging & Delivery
Packaging Details
ultrasonic flow meter : carton
Port
Dalian
Lead Time :
Quantity(Units) 1 - 5 >5
Est. Time(days) 6 To be negotiated
Product Description

                            Teren 4-20ma Portable Flow Meter Print Ultrasonic Flow Meter

TDS-100P portable ultrasonic flow meter,heat meter is suitable for any industry application of fluid flow/heat online calibration and measurement.good at easy operation,high accuracy,good consistency,online printing, longer battery powered time,heat measurement,and so on.

Product Features

*High accuracy, better than K 1 % of velocity
*Bi-directional measurement, totalize for net, positive and negative flow.
*Wide pipe size range, from DN 15 to DN 6000 mm
*Wide flow measurement range, from 0 m/s to 32 m/s
*Liquid need not be conductive.
*Can be fitted in complicated pipe lines since flow path straightening requirement is minimal.
*Availability from DN15mm to 6000 mm.
*Choice of battery powered or DC or AC powered.
*Fastest & simplest installation & can have choice of installation without shutdown of line supply.
*Negligible installation cost.
*One unit can measure flow in different diameter sizes.

Technology

Technology Of Flow Meter

Content
Technique feature
Measuring Principle
When the ultrasonic beam is transmitting in the liquid,its transmit time is proportional to the liquid flow
Application
for continuously measuring the flow of most clear,single and pure liquid which do not have large consistence suspended matter or bubbles.
Linearity
Better than 0.5%
Accuracy
Better than 1.0%
Repeatability
Better than 0.2%
Sensor Installation Method
Clamp-on,Braket
Applicable temperature
Standard 0℃-70℃,high temperature 0℃-160℃
Medium
water, sea water, sewage, alcohol, various oils such as uniform, single,
Display
Display the instantaneous volume,instantaneous heat, instantaneous velocity, instantaneous cumulant , instantaneous signal status and so on
Output interface
4-20Ma , impulse ,OTC, frequency,RS232, RS485 output options
Input interface
3-way 4-20Ma analogue input,2-way platinum resistance input options
Other Function
Day,month,year accumulator, power on and off management function,work status self-diagnosis function
Communication protocol
MODBUS protocol, MUS protocol, FUJI extension protocol and other compatible protocol
among the ultrasonic flow meter and water meter of other internal manufacturers
Power supply
220VAC(Standard) Battery: built-in Ni-MH accumulator which can work for more than 12hours continuously

Technology Of Transducers

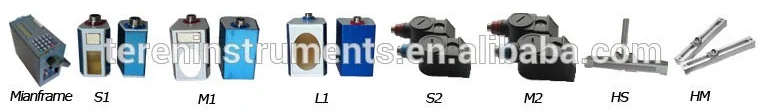

Optional Transducer
Measuring Range
Liquid Temperature
Accuracy
TR-S1(Small Size)
DN15-100mm
0°C~90°C
                                                                                                                                                                                                      ±1%
TR-M1(Medium Size)
DN50-700mm
  0°C~90°C
TR-L1(Large Size)
DN300-6000mm
  0°C~90°C
TR-HS2(Small Size)
DN15-100mm
0°C~160°C
TR-HM2(Medium Size)
DN50-700mm
0°C~160°C
TR-HL2(Large Size)
DN300-6000mm
0°C~160°C
TR-HS
DN300-6000mm
0°C~160°C
TR-HM
DN50-700mm
0°C~160°C

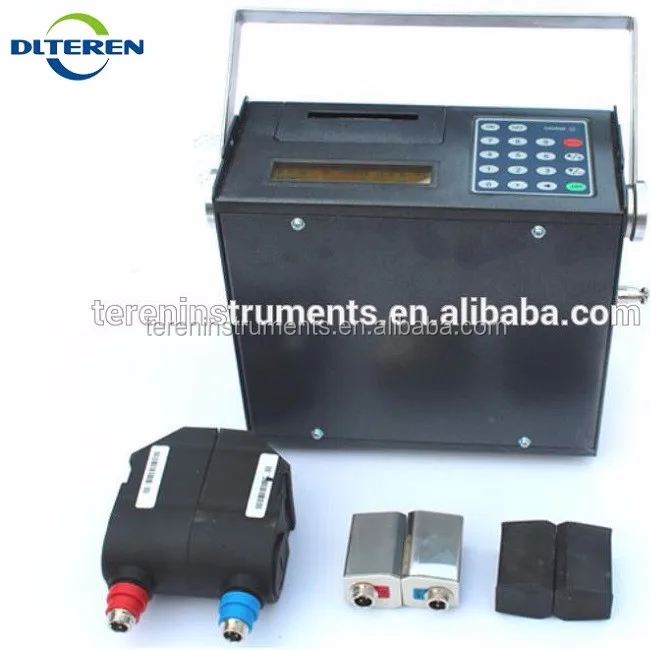

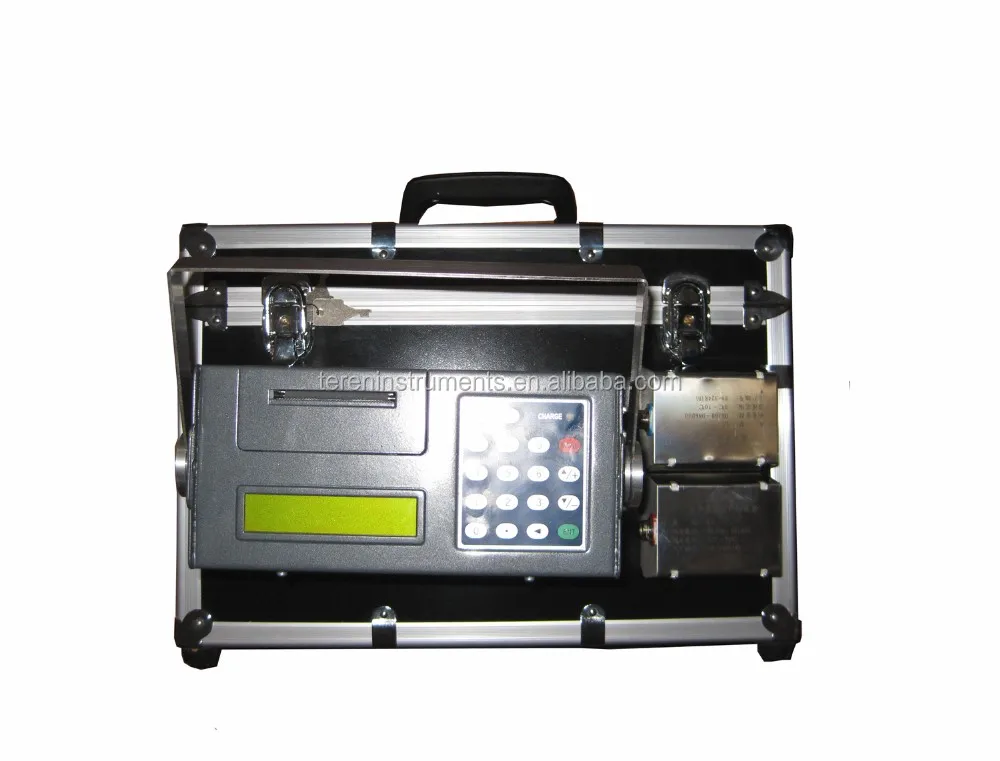

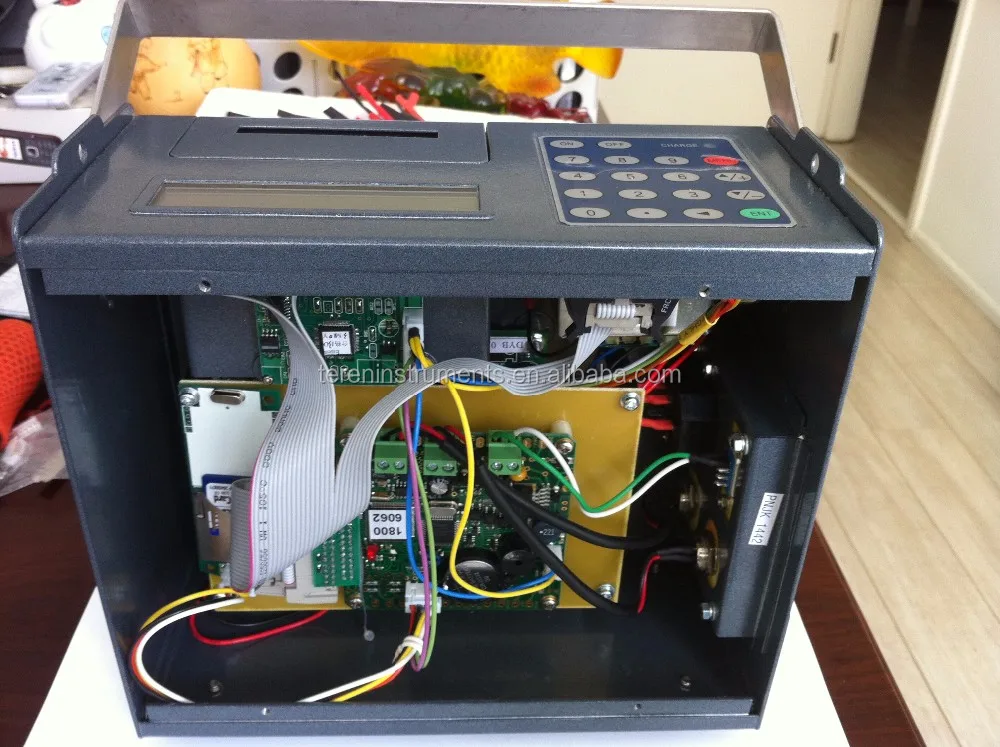

Detailed Images

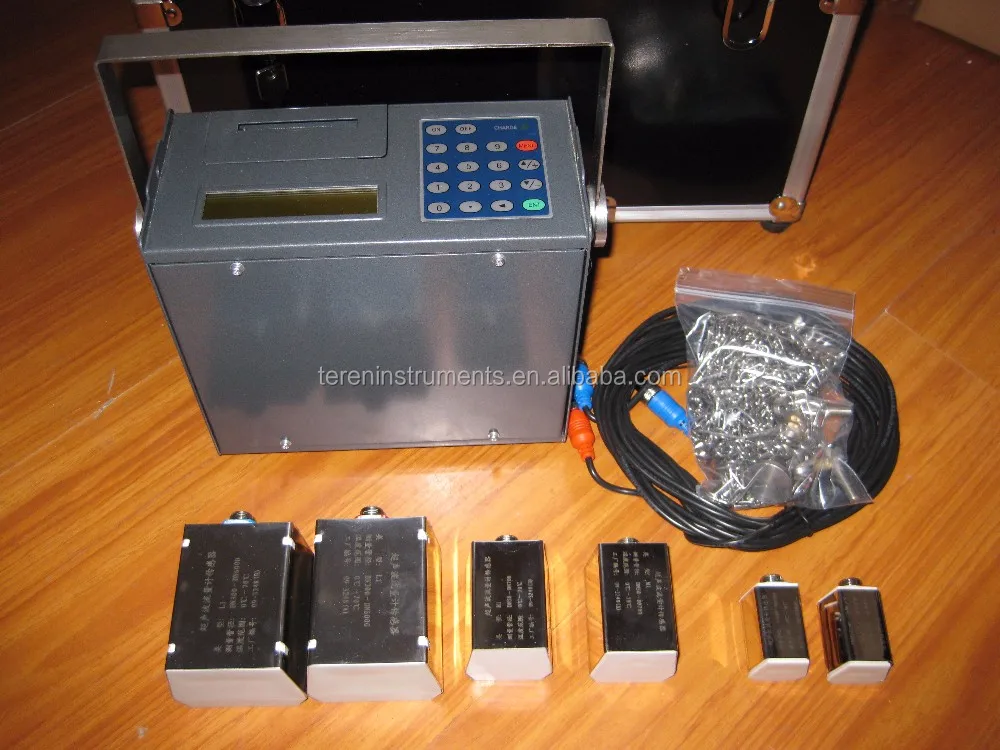

Standard Configuration

1. Main machine........................ 1 piece
2. Transducer(Optional)....................1 pair/each
3. Clamp Fixture Belt(stainless steel)..............................1 pair
4. Software.......................1pc
5. Tape Ruler.................................................1 piece
6. Cable............................................. 5m*2/ or 10m*2
7. English User Manual.................................... 1 piece
8. Coupling Agent .................1 piece
9. Aluminium protective carton ..................1 piece

Our Service

What Can We Do For You ?

1. Factory price with OEM & ODM service
2. ISO & CE certificated with the ultrasonic flow meter .
3. Usually we have fow meter in stock,we can send the flow meter within 24hours .
4. 18months warranty : if there is any fault with the ultrasnic flow meter during the warranty,we will send you the same model freely ,we will do as what we promised to coustomers.
5. 10% less freight charge at lest : We have good frendship with DHL and TNT ,we can get the best price of feright from them,usually we can get 10% less than others.
6. We provide 24hr online service

How To Place An Ordre ?

In order to help you get the exact model, pls offer the following necessary info:
1. The pipe size is DN___mm or ___inch .
2. The medium is _____.
3. Temperature is _____ °C.
4. The material of the pipe is _____.
5. Other requirements :_____.
If you have any query, pls feel free to contact me.

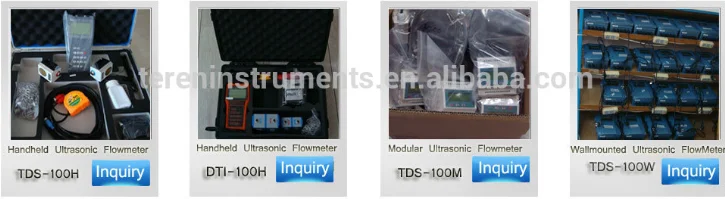

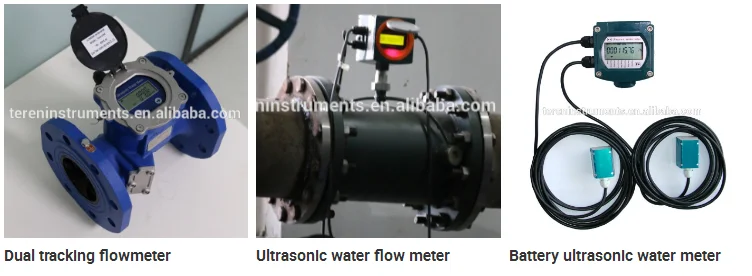

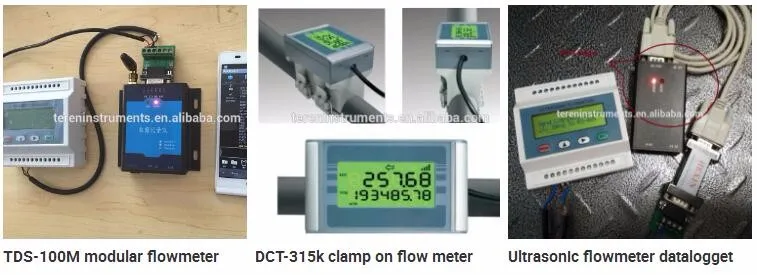

Related Products

With almost 10 yeras experience in producing and exporting ,we can supply kinds of ultrasonic flow meter with high quality and reasonable price.Pls get back to us soon if we can do something for you .

Our Company

 Teren instruments was established in 2007, main focus on running of instruments, main cover ultrasonic flow meter, ultrasonic level meter, ultrasonic water meter, electromagnetic, turbine, vortex, oval gear flow meter, radar Level meter and other series industry instruments.

we have overcame many technical difficulties on fluid analysis under the guidance of Professor Jing Xian Wang , such as "High frequency Multiple-pulse Ultrasonic launch drive","Hydraulic pipeline efficient circulation Washing Device" and so on, meanwhile, Jing Xian Wang professor have got several patents, like ZK-120.

Our products gain acceptance from users in domestic and aboard for years. We are reliable, experienced and trustworthy.
